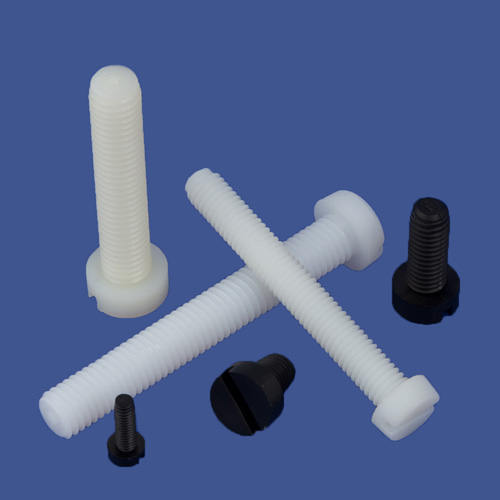

Nylon Cheese Head Screws

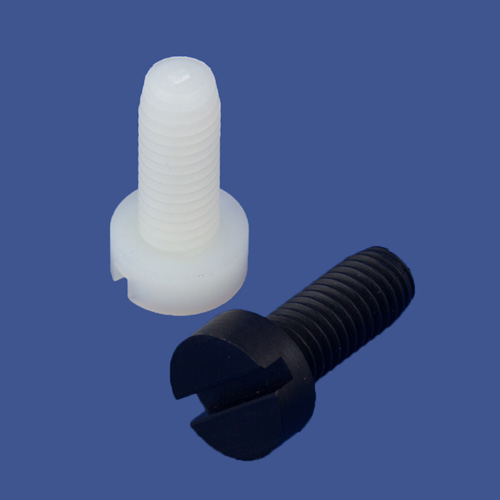

Cheese Head Screws have a disc with a cylindrical outer edge and height approximately half the head diameter.

Stock sizes are M3 to M12 Thread Type (Metric Din 84). M2 and M2.5 also available
Moulded from Nylon PA 66 (Natural), some sizes also available in Nylon PA 66 (Black)

Download PDF

METRIC DIN 84
NATURAL NYLON
Size	Length	Length	Length
M3	4MM	5MM	6MM
	8MM	10MM	12MM
	16MM	20MM	25MM
	30MM	35MM	40MM
M4	5MM	6MM	8MM
	10MM	12MM	16MM
	20MM	25MM	30MM
	35MM	40MM	45MM
	50MM
M5	6MM	8MM	10MM
	12MM	16MM	20MM
	25MM	30MM	35MM
	40MM	50MM	60MM
	70MM
M6	5MM	8MM	10MM
	12MM	16MM	20MM
	25MM	30MM	35MM
	40MM	45MM	50MM
	60MM	70MM	75MM
M8	10MM	16MM	20MM
	25MM	30MM	35MM
	40MM	50MM	60MM
	70MM	75MM	80MM
	85MM	90MM	95MM
	100MM*	110MM*	120MM*
	130M*
M10	6MM	8MM	10MM
	12MM	16MM	20MM
	25MM	30MM	35MM
	40MM	50MM	60MM
	70MM	100MM*	110MM*
	120MM*	130MM*
M12	10MM	12MM	16MM
	20MM	25MM	30MM
	35MM	40MM	50MM
	60MM	70MM
SCREWS MARKED * NOT FULLY THREADED.
