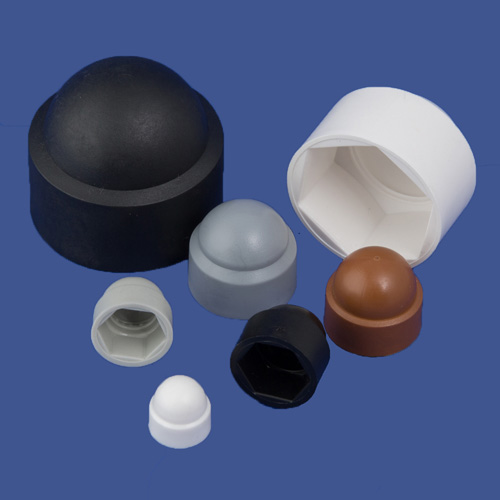

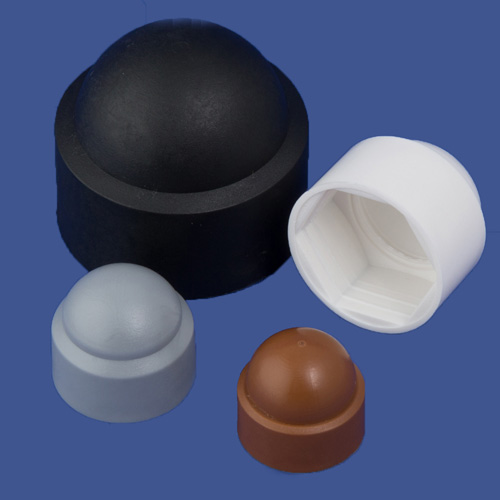

Head Covers – Hex Head Screws and Nuts
These caps cover bolt head and hexagon nuts and suit all spanner sizes. They provide effective protection against corrosion, weathering, tampering and dirt and give damage protection against injuries and as well as an aesthetically pleasing finish
- Made from Polyethylene (PE) resists acids, greases and oils
- Easy to fit and remove
- Stock Sizes M4 to M20 (Black, White, Grey, Brown). Also available M22 to M64 (Black only)
- Other colours can be supplied subject to Minimum Quantities
- Metric
- Imperial
| METRIC (Millimetres) | ||
| POLYETHYLENE | ||
| Size | A | B |
| M4 | 7.0MM | 8.5MM |
| M5 | 8.0MM | 10.5MM |
| M6 | 10.0MM | 12.8MM |
| M8 | 13.0MM | 15.5MM |
| M10 | 17.0MM | 19.0MM |
| M12 | 19.0MM | 20.5MM |
| M14 | 22.0MM | 23.8MM |
| M16 | 24.0MM | 26.5MM |
| M18 | 27.0MM | 30.0MM |
| M20 | 30.0MM | 31.5MM |
| M24 | 36.0MM | 39.0MM |
| M27(S) | 41.0MM | 46.5MM |
| M27(L) | 42.0MM | 46.5MM |
| M30 | 46.0MM | 50.0MM |
| UP TO M64 | ||
| A= ACROSS THE FLATS INTERNAL B= HEIGHT |
||
| STANDARD COLOURS BLACK, WHITE, GREY OR BROWN | ||
